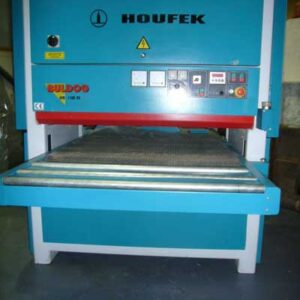

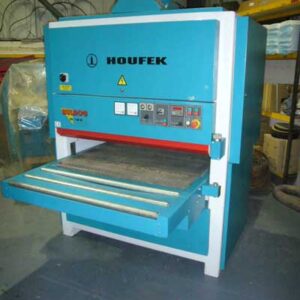

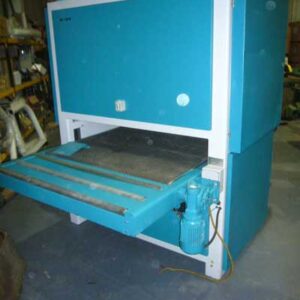

Houfek Combi 1100 RC Twin Belt Sander
£8,750.00 + VAT
The Houfek Twin Belt Sander is intended for users who require high utility value and maximum performance.
Please note price is Ex-Works, call re Shipping
- Description
- About Conway Saw
Description
The Houfek Twin Belt Sander is intended for users who require high utility value and maximum performance.
Ideal for calibration and sanding of massive wood, calibration of boards (MDF, hardboards, joint boards) and sanding of veneered surfaces.
Standard Set-Out
- Two rubberised pressure rollers
- Motorised lift of table
- Automatic start switch
- Oscillationg of sanding band by infra-red ray
- Digital display of table position
- Automatic measuring of material width
- Double-speed feeding of material
- Sound proof protection
- CE electrical and safety standard
Motor with the effective disc brake
Automatic centering of feeding belt
Automatic measuring of material width
Oscillating of sanding belt by infra-red ray
Control panel with ammeter (optional)
Extended table with two rollers (optional)
[custom_table]
| Technical | |
|---|---|
| Max. operating width | 1100mm |
| Operating height max/min | 160mm/3mm |
| Sanding belt dimensions | 1120mm x 1900mm |
| Sanding belt speed | 18m/s |
| Feed speed | 4,5/9m/min |
| Main motor power consumption | 11 (*2×11)kW |
| Feeding motor power consumption | 0,315/0,55kW |
| Table stroke motor power consumption | 0,18kW |
| Pneumatic operating pressure | 0,6MPa |
| Air pressure consumption | 10 (*20) l/min |
| Air pressure consumption with blower | 350 (*700) l/min |
| Suction device output | 3500 (*4600) m3 |
[/custom_table]
