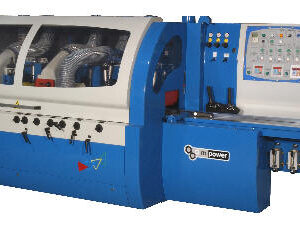

Throughfeed Heavy Duty Planer Moulder Mpower RMM-623
Call For Price
- Electronic positioning by keypad control and motorised adjustment to near side spindle horizontal movement with LED measurement display.
- Electronic positioning by keypad control and motorised adjustment to 2nd top spindle vertical movement with LED measurment display.
- 60mm high fences.
- Vertical spindles have 30mm vertical adjustment.
- Horizontal spindles have 20mm horizontal adjustment.
- Description
- About Conway Saw
Description
- Electronic positioning by keypad control and motorised adjustment to near side spindle horizontal movement with LED measurement display.
- Electronic positioning by keypad control and motorised adjustment to 2nd top spindle vertical movement with LED measurment display.
- 60mm high fences.
- Vertical spindles have 30mm vertical adjustment.
- Horizontal spindles have 20mm horizontal adjustment.
- Receding chipbreaker assembly before first and second top heads with mechanical digital readout.
- In-feed side pressure unit before first bottom head.
- Side pressure unit opposite fence side heads moving with near side head.
- Adjustable side guides after near side head.
- Pad pressure after first and second top heads.
- 2350mm in-feed table with 10mm adjustment.
- 40mm diameter spindles belt driven, with spindle speed of 6000rpm.
- All spindles have horizontal and vertical adjustment, with mechanical digital readouts for fast and accurate setting.
- Independent manual vertical adjustment to top heads.
- High precision spindle units with super high precision high speed bearings.
- All bedplates and fences have hardened chrome.
- Manual bed lubrication system.
- Heavy duty main frame with optimum vibration absorption.
- Centralised lubrication system to all main slides.
- Safety interlock at in-feed to prevent feeding oversized material.
- Lift up sound and safety enclosure including internal lighting with safety interlocks.
- Timed interlock to lift up enclosure with safety feature to enable setting with enclosure open.
- Dust hoods.
- Toolkit.
- Instruction and maintenance manual, electrical diagram and parts list.
- Machine supplied with electrics arranged 3/50/390 v.
- Machine conforms to CE specification.
| Technical | |
|---|---|
| Minimum/Maximun size of timber admitted width | 20 – 230mm |
| Minimum/Maximum size of timber admitted thickness | 8 – 160mm |
| Head Sequence & Motor Powers | |
| First bottom | 5.5kW / 7.5hp |
| Fence side | 5.5kW / 7.5hp |
| Near side | 5.5kW / 7.5hp |
| First top | 7.5kW / 10hp |
| Second top | 7.5kW / 10hp |
| Second bottom | 7.5kW / 10hp |
| Note: All 10hp motors include star delta starters | |
| Cutting Circles: | |
| First bottom head | 108mm 145mm maximum |
| Fence side heads | 108mm 200mm maximum |
| Near side heads | 108mm 200mm maximum |
| First top heads | 108mm 200mm maximum |
| Second top heads | 108mm 200mm maximum |
| Second bottom head | 108mm 200mm maximum |
| Feed System: | |
| Maintenance free full cardan shaft drive to feed works for balanced drive performance, with individual worm reduction gear box to each feed roller station. | |
| Feed roller diameter | 140mm |
| Infinitely variable feed speeds with electronic inverter and feed speed LED display: 6 – 30 metres per minute | |
| Feed motor power | 4kw / 5.5hp |
| Top in-feed rollers before first bottom head with pneumatic rise and fall by switch. | |
| Steel feed rollers up to top head are hardened and chromed to resist wear and to minimise chip adhesion. | |
| Polyurethane feed rollers after top head. | |
| Two driven serrated in-feed bed rollers before first bottom head 1 x 30mm & 1 x 50mm. | |
| One full width driven plain bed roller before second top head. | |
| All bed rollers are cardan shaft driven. | |
| Pneumatic pressures to feed roller loading with 3 no pressure regulator controls. | |
| Powered rise and fall to feed beam with 1.1kW / 1.5hp motor. | |
| All feed rollers and pressures move with top beam rise and fall, including safety switches at extreme points. | |
| Inch forward and reverse to feed with duplicate control at top head position for fast and easy setting. | |
